Accelerators

Results in last year

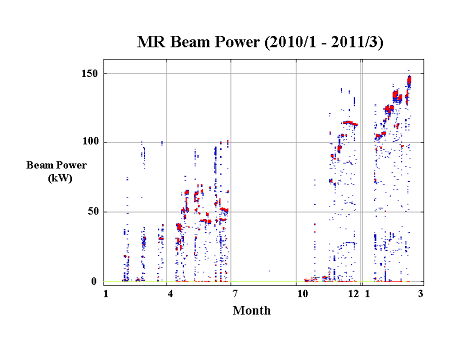

The change of beam power for 1 year in last year of MR

3SX

Everyday beam power

The blue : 0.1% or less ( test and abnormality )
The red : In the normal operation
The thin green : 100% ( in the stop )



Maximum power in records

The result of examining the data in detail, it was proven that there was beam power which exceeds 150kW.

03/08/2011 11:31:40 145.849241 kW
03/08/2011 11:35:34 151.975517 kW
03/08/2011 11:37:21 144.662674 kW

The largest beam power was 152kW with the record on the computer. (Figure creator said.)

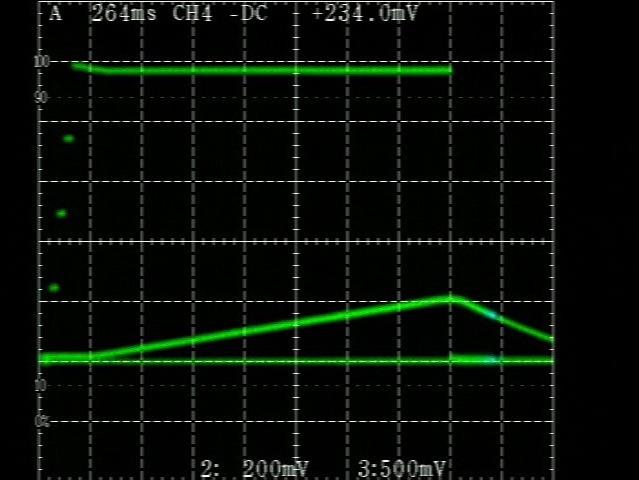

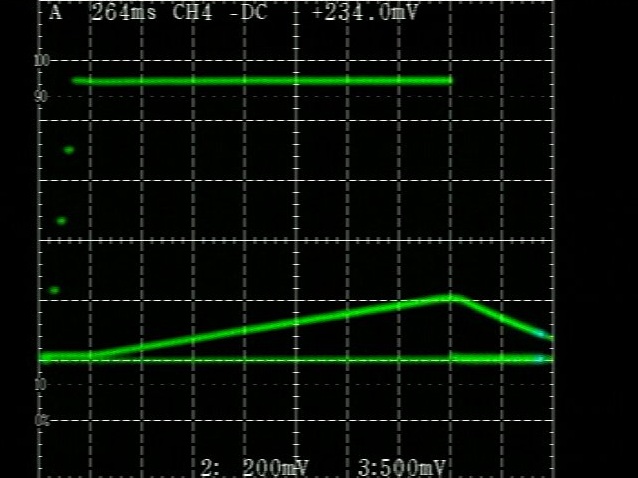

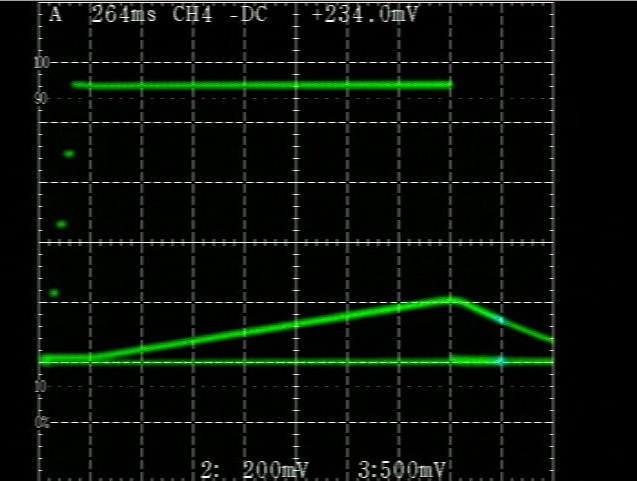

Next 3 pictures show the waveform of beam intensity. Center shows maximum power.　Upper line in the figure is beam power. Lower line shows magnetic field.
