Internal structure of the Xi nucleus finally observed
- New insights into the formation of nuclei and the structure of neutron stars -

Gifu University
Tohoku University
J-PARC Center
High Energy Accelerator Research Organization (KEK)



  An international research group [see latter:【International research team】] led by Senior Professor Kazuma Nakazawa and Postdoctoral Fellow Masahiro Yoshimoto (Graduate School of Education and Engineering, Gifu University), Assistant Professor Junya Yoshida (Graduate School of Science, Tohoku University) and Professor Toshiyuki Takahashi (Institute of Particle Physics and Nuclear Studies (IPNS), High Energy Accelerator Research Organization (KEK)) has observed of a novel hypernucleus called the Xi nucleus. The Xi nucleus contains a Xi-minus particle (i.e. negatively charged Xi particle) 1 ) with two strange quarks 1 ) (Fig. 1). This Xi nucleus was produced in the Japan Proton Accelerator Research Complex (J-PARC) E07 experiment. The event has been named the Irrawaddy event after the majestic river in Myanmar, the home country of the Gifu University student who detected it. Analysis shows that the Irrawaddy event was produced by the strong attraction (i.e. high binding energy) between a Xi-minus particle and a nitrogen-14 nucleus. Further analysis indicates that the binding energy was five times that of an event announced by the present research group in February 2021 the (Ibuki event [*]). The Irrawaddy observation confirmed the attraction between the Xi particle and the nitrogen-14 nucleus due to the 'strong interaction' 2 ) (i.e. nuclear force), which is much stronger than the electromagnetic interaction (i.e. Coulomb force). Furthermore, successful observation of the inner level structure 3 ) of the Xi nucleus was achieved for the first. The discovery of the Xi nucleus was unexpected according to many current theories, and it is hoped that this discovery will lead to the development of a new theory in the future. Since strange-quark-containing hyperons 1 ) such as Xi-minus particles are thought to appear in the cores of neutron stars 4 ), which are the densest objects in the universe and are considered giant nucleus, the results of this research will play an important role in our understanding of neutron stars.

  The results of this research will be published in the online journal : Progress of Theoretical and Experimental Physics (PTEP) on 23rd July, 2021.

20210726_01e

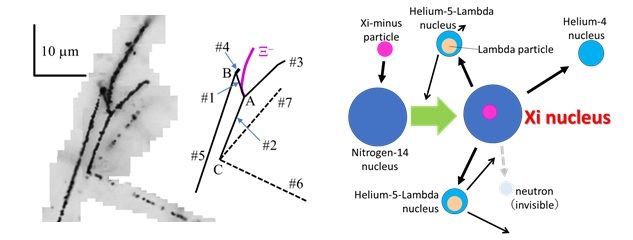

  Figure 1. Micrograph and images of a new Xi nuclear event (Irrawaddy event) observed in a photographic emulsion sheet. A Xi-minus (Ξ-) particle was absorbed by a nitorogen-14 nucleus at point A to form Xi nucleus, which decayed into two helium-5-Lambda nuclei (#1 and #2), a helium-4 nucleus (#3) and a neutron. The neutron is invisible on the micrograph because it has no electric charge. At points B and C, the two helium-5-Lambda nuclei decayed into two hydrogen nuclei each, as well as several uncharged particles, namely neutrons and neutral pions.

Points of Press Release

 ∗ In the largest-ever Xi nucleus search experiment at J-PARC, a Xi nuclear event (Irrawaddy event) of unprecedentedly high binding energy was observed. The binding energy was more than five times that of a Xi nuclear event (Ibuki event) reported by our group in February 2021.
 ∗ The Irrawaddy event shows that the Xi-minus particle and the nucleus were in the most deeply bound s-state 3 ). This state, together with the Ibuki event showing the p-state 3 ), reveals the level structure inside the Xi nucleus.
 ∗ The level structure of the Xi nucleus reveals the magnitude of the force binding Xi-minus particles to protons and neutrons. This insight is important for understanding how nuclei are formed from quarks and for understanding the internal structure of neutron stars, where the densest matter in the universe resides.

[ Text ]

Highlights and achievements

  The research team observed a novel event of the Xi nucleus (Irrawaddy event) in the J-PARC E07 experiment conducted at the J-PARC Hadron Experimental Facility. Detailed analysis reveals that this event was due to the binding of a Xi-minus particle to a nitrogen-14 nucleus at a very large energy of 6.27 ± 0.27 MeV. Like negatively charged electrons, Xi-minus particles are bound to positively-charged nuclei by the Coulomb force, however the Coulomb force acting alone could not generate a binding energy over 1 MeV. The observed event thus represents the formation of the s-state of the Xi-nucleus, which is even more strongly bound by the attractive nuclear force of the strong interaction with the nucleus in addition to action of the Coulomb force, than the previously detected p- and d-states of Xi nuclei. Taken together, these results reveal the level structure of the Xi nucleus, as seen in Figure 2, and specify the magnitude of the attractive force due to the strong interaction.

  The Xi nucleus decays via a reaction in which a Xi-minus particle reacts with a proton in the nucleus to convert it into two Lambda particles 1 ). If the likelihood of this conversion reaction were higher, then the nucleus would typically break down before the Xi-minus particles could enter the nucleus and form the Xi-nuclear state. Therefore, the existence of Xi nuclei also implies a relatively low likelihood for the conversion reaction.

  The strong interaction between Xi-minus particles and nuclei is important for understanding the origin of nuclei, as are the forces and conversions between Xi particles 1 ) and protons or neutrons. These phenomena are also crucial for understanding the inner state of neutron stars, which can be regarded as at astronomical scale.

20210726_02e

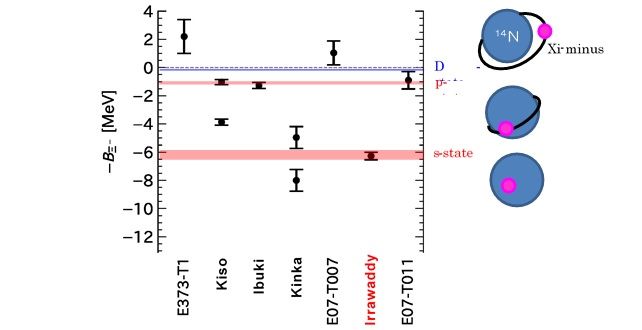

  Figure 2. Schematic diagram of the binding energy (BΞ-) between the Xi-minus particle and the nitrogen-14 nucleus (14N) and the corresponding states in the Xi nucleus measured thus far. The singly measured BΞ- value for both the Irrawaddy and Ibuki events allows two different BΞ- values of the Kinka and Kiso events to be interpreted as s- and p-orbits, respectively. In the case of the nitrogen-14 nucleus, the d-orbit after s and p is denoted as a capital 'D' because electromagnetism is the dominant force in this case, with little influence from the strong interaction. As the level becomes shallower than the s-state, the distance from the Xi-minus particle to the center of the nucleus increases.

Background

  A Xi nucleus is a nucleus that contains a Xi particle added to the normal nucleus. Like protons and neutrons, which make up a normal nucleus, each Xi particle is made up of three quarks. A Xi particle includes two strange quarks and characteristically decays within about 10 billionths of a second. Hypernuclei, i.e. nuclei containing strange quark(s), do not naturally exist on the earth and their study leads to a deeper understanding of the mechanisms of nucleus formation. The study of hypernuclei, especially Xi nucleus, is also important for understanding neutron stars, which are regarded as giant nucleus with the size of celestial bodies. Neutron stars are ultra-dense objects formed after the supernova explosion of a star, and neutron star merging events have attracted much attention in recent years as a source of gravitational waves and heavy elements in the universe. To understand the properties of neutron star, such as maximum mass, radius, internal density and pressure, scientists must consider the conditions under which particles are produced in the interior of neutron stars including the Xi particles. Since the conditions for Xi particle production depend on the magnitudes of forces between a Xi particle and a proton or neutron, it is necessary to determine these magnitudes in earth-based experiments. Scientists have eagerly awaited additional experimental data on Xi nucleus for some time.

  Previous experiments had suggested that the strong interaction between a Xi particle and a nucleus was attractive. In 2015, the group of senior professor Kazuma Nakazawa reported the world's first Xi nuclear event (Kiso event[**]) at the KEK 12 GeV proton synchrotron (E373). This report revealed that the strong interaction between a Xi particle and a nucleus is indeed an attractive force. However, the binding energy could be interpreted in two ways. In order to measure in detail, the force acting between a Xi-minus particle and a nucleus, it was necessary to detect a large number of Xi nuclear events for each of which the binding energy could be uniquely determined. Therefore, the research team planned and carried out an international collaborative experiment (J-PARC E07) aiming to increase the number of observed events by an order of magnitude by developing a new technology at J-PARC, where a high-intensity beam was available.

Experiment and Analysis

  In the E07 experiment at the J-PARC Hadron Experimental Facility, Xi-minus particle was produced using an accelerator beam of high-intensity, high-purity, negatively charged K mesons (K-) 1 ). A large number of Xi-minus particles were injected onto a total of 1500 special photographic emulsion sheets to record Xi nuclear events. The emulsion sheets were then developed, and dedicated optical microscope systems searched them for Xi nuclei. In order to enhance the efficiency of the search, the reactions that produced Xi-minus particles were identified and located by using a set of detectors placed in front of and behind the emulsion sheets. These measured positions were used to search for Xi-minus particles on the sheets. As a result of this search, an event was observed in which a Xi-minus particle was absorbed by a nucleus in the photographic emulsion sheet and split into two Lambda nuclei and other particles. The analysis uniquely determined that the event was caused by the absorption of a Xi-minus particle by a nitrogen-14 nucleus in the emulsion sheet and the decay of this Xi nucleus into two helium-5-Lambda nuclei, a helium-4- nucleus and a neutron, with a binding energy of 6.27 ± 0.27 MeV.

  The event was named the 'Irrawaddy event' after the majestic river in Myanmar, the home country of the international student at Gifu University who led the microscopic search and discovered the event. Only a few Xi nuclear events have yet been observed, and it is customary for research teams to name each new discovery after a place associated with discoverer or with the institution that contributed to its discovery.

Future Perspectives

  By revealing the level structure in the Xi nucleus, in which a Xi-minus particle bound, this study will lead to an understanding of how matter is formed from the elementary particles, called quarks. It will also bring us one step closer to understanding the internal structure of neutron stars, which are regarded as giant nuclei.

  The research group responsible for the Irrawaddy event is now developing a new search method for Xi nuclei, called the 'overall-sheet scan' method. This method will facilitate the detection of Xi nuclei that the current searching method cannot identify. It is estimated that the number of Xi-nuclear events observable with the new technique will exceeded that of the present detection limit by an order of magnitude, thus exceeding those of past experiments' detection limits by 2 orders of magnitude. The observation of many more Xi nuclei will allow us to measure the various types and energy states of Xi nuclei in a more systematic and precise way, while also elucidating the details of the strong interaction that acts on the Xi particle.

Article information

Journal Name Progress Theoretical and Experimental Physics
Title irst observation of a nuclear s-state of Ξ hypernucleus, 15ΞC
Authors M. Yoshimoto et al.
DOI number 10.1093/ptep/ptab073
Published URL https://www.doi.org/10.1093/ptep/ptab073

International research team

  This research was carried out by an international research team formed by the following universities and institutes (20 agencies, 49 students and researchers):

Faculty of Education, Gifu University, Japan
Graduate School of Engineering, Gifu University, Japan
Advance Science Research Center, Japan Atomic Energy Agency (JAEA), Japan
Department of Physics, Tohoku University, Japan
Institute of Particle and Nuclear Studies (IPNS), High Energy Accelerator Organization (KEK), Japan
Department of Physics, Osaka University, Japan
Department of Physics, Kyoto University, Japan
High Energy Nuclear Physics Laboratory (RIKEN), Japan
Meson Science Laboratory (RIKEN), Japan
Korea Research Institute of Standards and Science, Korea
Department of Physics, Korea University, Korea
Research Institute of Natural Science, Gyeongsang National University, Korea
Department of Physics and Astronomy, University of New Mexico, USA
Department of Physics & Astronomy, Ohio University, USA
Helmholtz Institute Mainz, Germany
Institut für Kernphysik, Johannes Gutenberg-Universität Mainz, Germany
Institute of Nuclear Energy Safety Technology, Chinese Science Academy, China
Institute of Modern Physics, Shanxi Normal University, China
Department of Physics, Lashio University, Myanmar
Department of Physics, University of Yangon, Myanmar

Glossary

  1) Strange quark, Lambda particle, Xi particle, hyperon, kaons (K meson)
  A baryon is a particle composed of three quarks, like a proton or a neutron. Some baryons other than the proton and neutron can be formed by considering the third quark, the strange 's' quark, in addition to the up 'u' and down 'd' quarks. A Lambda particle (composition of uds) contains a strange quark, whereas each type of Xi particle contains two strange quarks: Xi-minus (dss) or Xi-zero (uss). A baryon that contains any number of strange quarks is called a hyperon.

  A nucleus that contains one or more hyperons is called a hypernucleus. A Lambda hypernucleus contains a Lambda hyperon, whereas a double-Lambda hypernucleus contains two Lambda hyperons. A Xi hypernucleus contains a Xi hyperon.

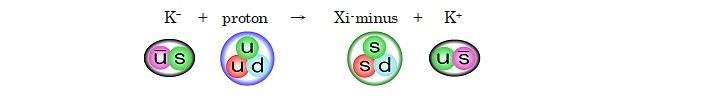

  A meson is composed of a quark and an anti-quark. A negatively charged kaon K- (us) is a meson which has a strange quark, where u is an anti-quark of the up quark. The Xi-minus particle is produced along with a K+ (u s) meson in the reaction of the K- beam with a proton in the diamond target.

20210726_03e

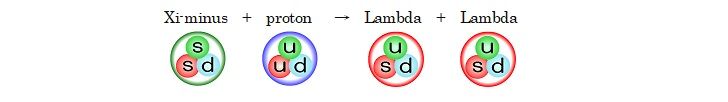

  A Xi-minus particle reacts with a proton and converts it into two Lambda particles. This conversion reaction causes the Xi hypernucleus to decay. At this point, the two Lambda particles may happen to bind together to form two Lambda hypernuclei; the Irrawaddy event observed here is just such an event.
