New Ba7Nb4MoO20-Based Materials with High Oxygen-Ion Conductivity Could Open Sustainable Future

Tokyo Institute of Technology
Imperial College London
High Energy Accelerator Research Organization (KEK)
Japan Proton Accelerator Research Complex (J-PARC)

  (Tokyo, January 25) Scientists at Tokyo Institute of Technology (Tokyo Tech), Imperial and High Energy Accelerator Research Organization (KEK) Institute of Materials Structure Science, discover new Ba7Nb4MoO20-based materials with high oxygen-ion (oxide-ion O2-) conductivities-"the hexagonal perovskite-related oxides"-and shed light on the underlying mechanisms responsible for their conductivity. Their findings lead the way to uncovering other similar materials, furthering research on developing low-cost and scalable renewable energy technologies.

  Over the past few years, fuel cells have become a focal point of research in eco-friendly technology because of their superior abilities to store and produce renewable energy and clean fuel. A typical type of fuel cell gaining ground is the oxide-ion-conducting fuel cell, which is primarily made of materials through which oxide ions (oxygen ions: O2-), can easily move. New materials with higher conductivity at low and intermediate temperatures, provide a number of advantages over commonly used fuel cells based on yttria-stabilized zirconia (YSZ) electrolytes, such as higher power generation efficiency, longer lifetimes, and lower costs.

  However, only a limited number of such materials are known and their application to developing fuel cells has largely remained at the laboratory scale. To truly achieve a sustainable energy economy, new oxide-ion conductors with high conductivity need to be discovered that can allow low-cost and efficient scaling up of these technologies.

  Scientists from Tokyo Tech, Imperial and KEK set out to address this need, and in a recent study, identified a new oxide-ion-conducting material that may be a representative of an entire family of oxide-ion conductors.

  The material in question has the chemical formula Ba7Nb3.9Mo1.1O20.05 and is classified as a "hexagonal perovskite-related oxide." Prof Masatomo Yashima, who led the study, explains: "Ba7Nb3.9Mo1.1O20.05 shows a wide stability range and predominantly oxide-ion conduction in the oxygen partial pressure range from 2x10-26 to 1 atm. Surprisingly, bulk conductivity of Ba7Nb3.9Mo1.1O20.05, 5.8 × 10−4 S/cm, is remarkably high at 310℃, and higher than bismuth oxide- and zirconia-based materials (Fig. 1)."* Prof Stephen Skinner comments that the fast oxide ion transport was unambiguously confirmed using the 18O tracer diffusion technique at Imperial.

20210122_01e

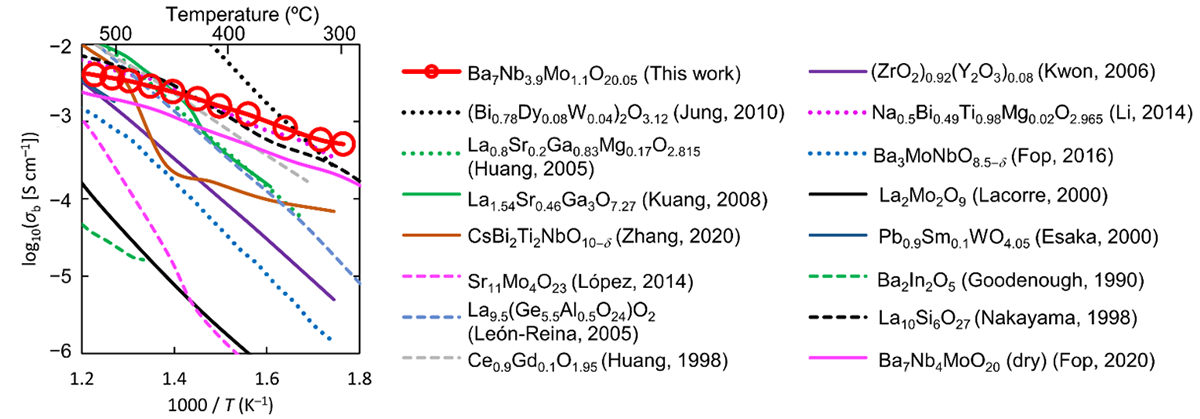

Fig. 1 | Comparison of bulk conductivities δb of Ba7Nb3.9Mo1.1O20.05 and other oxide-ion conductors.* Copyright: Nature Publishing Group (2021).

  Prof Yashima and his team note that the crystal structure of Ba7Nb3.9Mo1.1O20.05 contains oxygen-deficient layers (c' in Fig. 2a and Fig. 2c) and that its high oxide-ion conductivity is attributable to the oxide-ion migration on the c' layers. In fact, they succeed in experimental visualization of O1−O5 oxide-ion diffusion pathways by the neutron-diffraction measurements at a high temperature 800℃ with SuperHRPD diffractometer of Prof Takashi Kamiyama's group at KEK/J-PARC (Figs. 2b,d). Prof Yashima says that the oxide ions migrate via interstitialcy diffusion mechanism through interstitial octahedral O5 and lattice tetrahedral O1 oxygen sites and that the (tetrahedral)-(octahedral) diffusion pathways on the c' layer in Ba7Nb3.9Mo1.1O20.05 is the same as those in another hexagonal perovskite-related oxide Ba3MoNbO8.5-δ. Therefore, Prof Yashima and his team claim that "The common feature of the diffusion mechanism would be a guide for design of oxide-ion conductors with the hexagonal perovskite related structures and that the present finding of high oxide-ion conductivities in rare-earth-free Ba7Nb3.9Mo1.1O20.05 suggests the ability of various hexagonal perovskite related oxides as superior oxide-ion conductors".*

20210122_02e

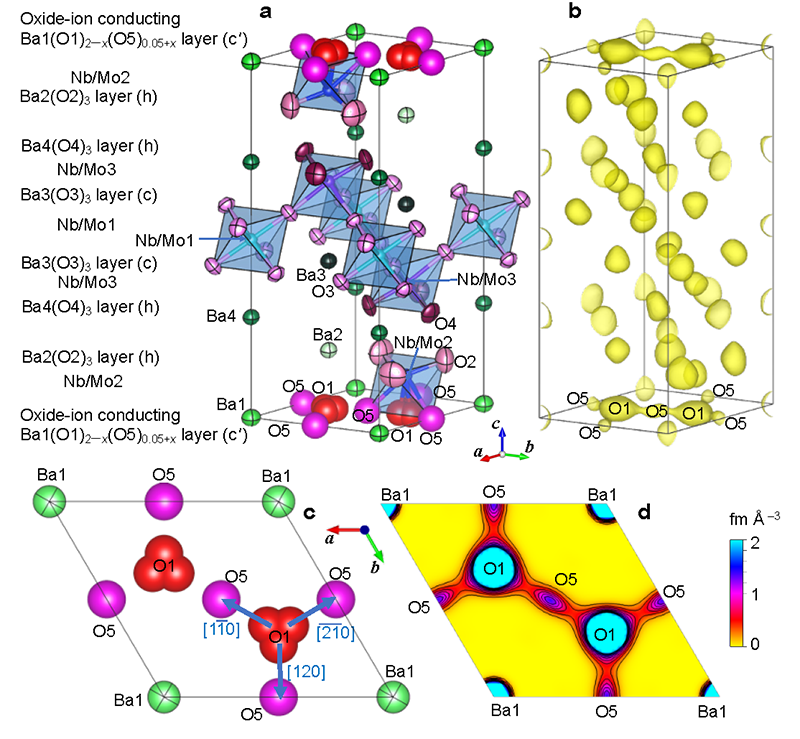

  Fig. 2 | Experimental evidence of the interstitial oxygen O5 and the O1−O5 oxide-ion interstitialcy diffusion of Ba7Nb3.9Mo1.1O20.05 at a high temperature of 800℃. (a) Refined crystal structure and (b) corresponding yellow isosurface of maximum-entropy method neutron scattering length densities (MEM NSLDs) at 0.36 fm/Å3 of Ba7Nb3.9Mo1.1O20.05 at 800℃. Refined crystal structure (c) and corresponding MEM NSLD distribution (d) on the ab plane at z = 0 of Ba7Nb3.9Mo1.1O20.05 at 800℃. In panel d, the contour lines from 0 to 2 fm/Å3 by the step of 0.2 fm/Å3. Arrows in panel c denote the directions of oxide-ion O1-to-O5 migration. Copyright: Nature Publishing Group (2021).

* Reference

Authors Masatomo Yashima,1* Takafumi Tsujiguchi,1 Yuichi Sakuda,1 Yuta Yasui,1
Yu Zhou,2 Kotaro Fujii,1 Shuki Torii,3,4 Takashi Kamiyama,3,4 Stephen J. Skinner2
Title of original paper High Oxide-Ion Conductivity through the Interstitial Oxygen Site in Ba7Nb4MoO20-Based Hexagonal Perovskite Related Oxides
Journal Nature Communications
DOI 10.1038/s41467-020-20859-w
Affiliations 1 Department of Chemistry, School of Science, Tokyo Institute of Technology
2 Department of Materials, Imperial College London
3 Institute of Materials Structure Science, High Energy Accelerator Research Organization (KEK)
4 Japan Proton Accelerator Research Complex (J-PARC)

  * Corresponding author's email: yashima[at]cms.titech.ac.jp
