Nuclear Transmutation Research

Nuclear Transmutation Research is composed of two experimental facilities, Transmutation Physics Experimental Facility (TEF-P) and ADS Target Test Facility (TEF-T).

TEF-P equips a critical assembly to investigate physical and dynamic properties of the accelerator-driven system (ADS) by using low power (10W) proton beam. Uranium, Plutonium and minor actinide fuels are planned to be loaded into the assembly.

TEF-T is a facility to examine the existence of ADS by engineering viewpoint. Liquid lead-bismuth spallation target is installed to the TEF-T and is irradiated by 400MeV-250kW proton beam. The proton beam line to connect these two experimental facilities is called ADS-BT. ADS-BT has a special device to extract very low power proton beam (10W) for TEF-P from high power proton beam (250kW) for TEF-T.

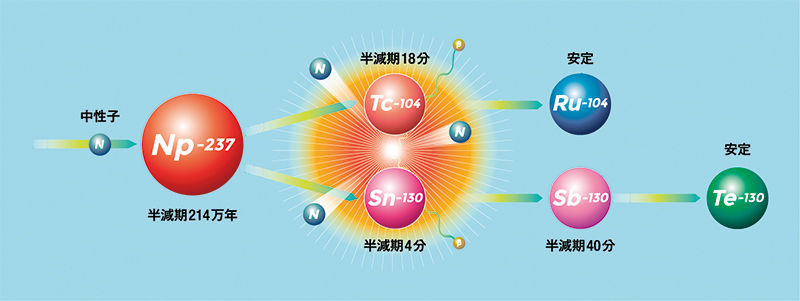

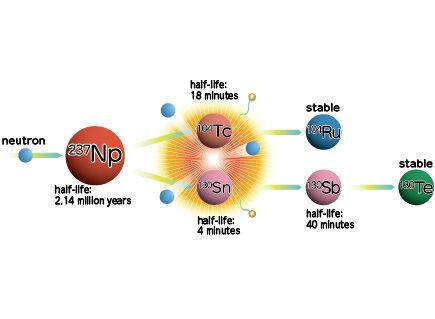

Principle of Transmutation

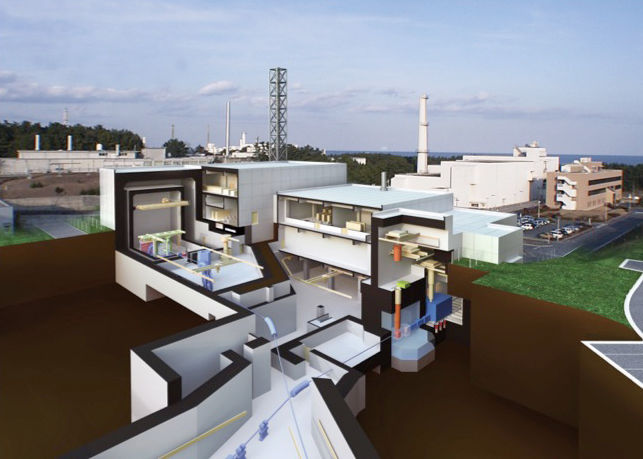

建設計画中の核変換実験施設

建設計画中の核変換実験施設

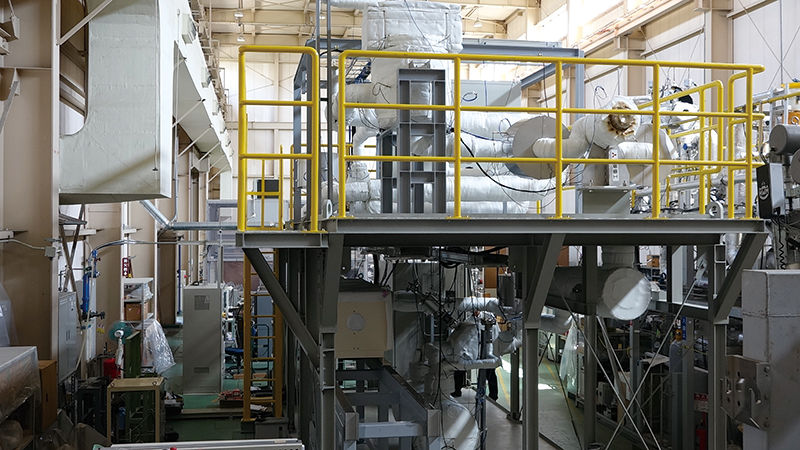

ADS Target Test Facility (TEF-T)

TEF-T is a facility to examine the experiments for material and thermo-hydraulics. Liquid lead-bismuth (LBE, Pb-Bi) spallation target will be installed to the TEF-T because the ADS designed by JAEA employs LBE as the coolant and spallation target material. LBE installed to the TEF-T will be irradiated by 400MeV-250kW proton beam.

核変換実験施設用核破砕 ターゲット模試試験装置

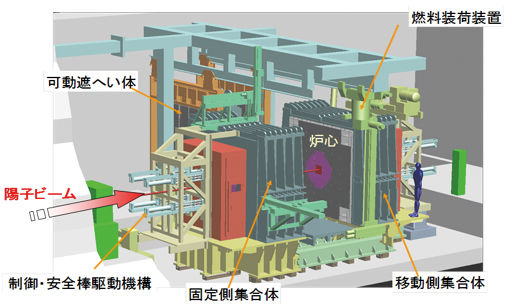

Transmutation Physics Experimental Facility (TEF-P)

TEF-P is a plate-type fuelled critical assembly which is able to introduce a proton beam (400MeV, 10W) delivered from the LINAC of J-PARC. Various experiments are available in a critical condition or a sub-critical state driven by spallation neutrons. Furthermore, the experiments using pin-type MA fuel, which will be handled with remote devices, are planned to simulate the MA-loaded systems.

核変換実験施設(TEF-P)
